Linear Weigher – 4H05L

Linear Weigher – 4H05L

Automatic Multi-Head Seed Weighing System

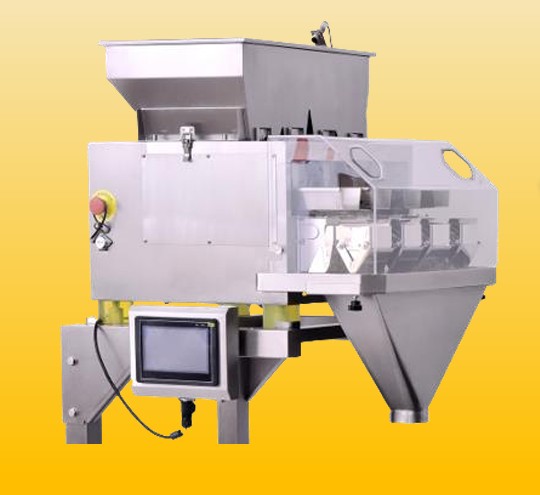

The 4H05L Linear
Weigher is an automatic multi-head weighing system designed for accurate
weighing of vegetable and flower seeds. With four weighing hoppers, the system
increases weighing efficiency and throughput while maintaining precise weight
control for commercial seed packaging operations.

Technical Specifications

Model:
4H05L Linear Weigher

Storage Hopper:
45 L capacity

Weighing System:
4 weighing hoppers, each 500 ml (0.5 L)

Speed:
12–24+ cycles per minute (depending on target weight)

Weighing Range:
5 g – 250 g (depending on seed density)

Accuracy:
±0.1 g – 1.0 g (depending on seed size)

Power Supply:
AC 110–220 V / 50–60 Hz / 1 Phase
Rated power: 0.80 kW

Seed Compatibility

Suitable for seeds with
diameters approximately 1–15+ mm, including:

• Tomato
• Melon
• Vegetable
  seeds
• Flower
  seeds
• Other
  similar seed types

Applications

• Automatic
  seed weighing
• Vegetable
  seed packaging lines
• Flower
  seed packaging operations
• Integration with automated seed packaging
  machines
