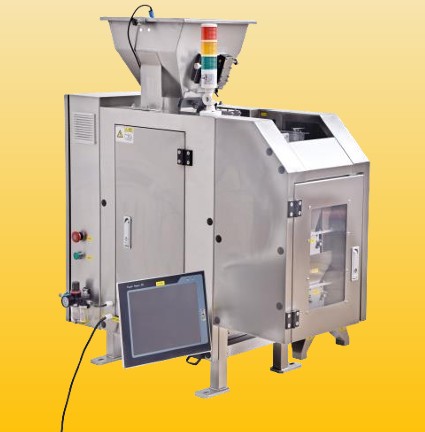

Automatic Dual-Lane Seed Counter (2nd Generation)

Seed Counting Machine – C-1023

Automatic Dual-Lane Seed Counter (2nd Generation)

The C-1023 Seed  Counter is a second-generation automatic dual-lane seed counting machine
designed for high-efficiency counting and packaging of vegetable and flower
seeds. With dual feeding channels and an integrated reject function, the system
increases throughput while maintaining accurate seed counting for commercial
seed processing operations.

Technical Specifications

Model:
C-1023 Dual-Lane Seed Counter (2nd Generation)

Storage Hopper:
24 L capacity

Feeding System:
Dual feeding channels

Speed & Accuracy:

• Low speed: 6–8 cycles/min | Accuracy ≤ 0–3 pcs
• High speed: 9–12 cycles/min | Accuracy 0–6+ pcs

Power Supply:
AC 110–220 V / 50–60 Hz / 1 Phase
Rated power: 0.80 kW

Air Consumption:
≤ 60 NL/min
Pressure: 0.65 MPa (6.5 kg)

Material:
SS304 stainless steel construction

Special Feature

• Integrated reject function for
  improved counting precision and quality control.

Seed Compatibility

Suitable for seeds with
diameters approximately 1–15+ mm, including:

• Tomato
• Melon
• Vegetable
  seeds
• Flower
  seeds
• Other
  similar seed types

Counting
Capacity

• Counting batches of 10s, 100s, 1000s,
  10,000+ seeds
• Maximum 30,000
  seeds per cycle

Example:
Counting 10,000 tomato seeds takes approximately 45–55 seconds.

Applications

• Seed
  processing facilities
• Seed
  counting and packaging lines
• Vegetable and flower seed packaging
  operations
