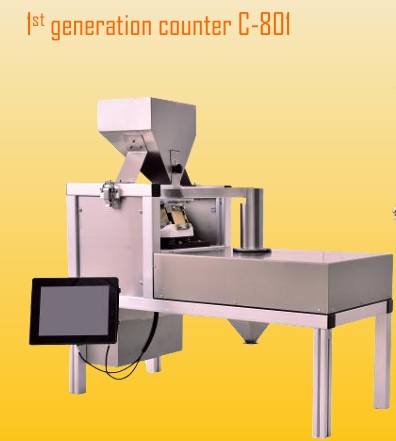

Seed Counting Machine – C-801

Seed
Counting Machine – C-801

Automatic
Seed Counter for Vegetable & Flower Seeds

The C-801 Seed Counter is a single-lane automatic seed counting machine designed for
accurate counting and packaging of vegetable and flower seeds. The system can handle a wide range of seed sizes and provides reliable counting performance for commercial seed processing operations.

Technical
Specifications

Model:
C-801 Single-Lane Seed Counter

Storage
Hopper:
12 L capacity

Feeding
System:
Single feeding channel

Speed:
3–6 cycles per minute

Counting
Accuracy:
0–6+ pieces

Power
Supply:
AC 110–220 V / 50–60 Hz / 1 Phase
Rated power: 0.80 kW

Air
Consumption:
≤ 60 NL/min
Pressure: 0.65 MPa (6.5 kg)

Material:
SS304 stainless steel construction

Seed
Compatibility

Suitable
for seeds with diameters approximately 1–15+ mm, including:

• Tomato
• Melon
• Vegetable
  seeds
• Flower
  seeds
• Other
  similar seed types

Counting Capacity

• Counts in batches of 10s,
  100s, 1000s, 10,000+ seeds
• Maximum
  30,000 seeds per single cycle

Example:
Counting 10,000 tomato seeds takes approximately 45–55 seconds.

Applications

• Seed
  processing plants
• Seed
  packaging operations
• Vegetable and flower seed
  counting for commercial seed lots
