Automatic Seed Counting & Bagging System – DB-350 with C-1023 Counter

Automatic Seed Counting & Bagging System – DB-350 with C-1023 Counter

High-Capacity Seed Counting and Packaging Machine (Dual-Lane Counter)

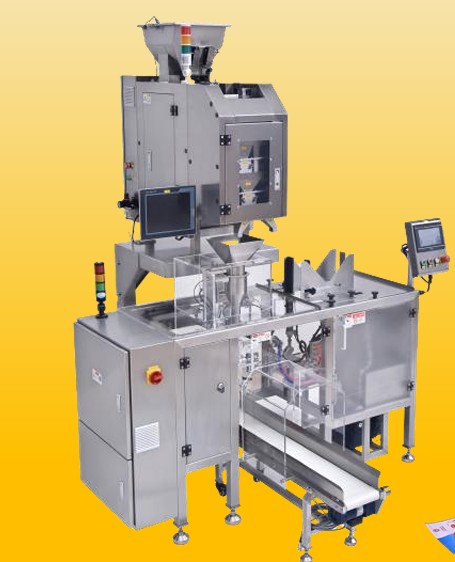

The DB-350 Automatic
Bagging System combined with the C-1023 Dual-Lane Seed Counter (2nd Generation)
is designed for efficient counting and packaging of vegetable and flower seeds.
The dual-lane counting system allows higher throughput while maintaining
reliable counting accuracy, making it suitable for large-scale seed packaging
operations.

Technical Specifications

Counting Speed:
6–12 bags per minute

Bag Types:

• Stand-up
  bags
• Side-sealed
  bags

Bag Size Range:
Width: 100–280 mm
Height: 120–320 mm

Working Range:
30–30,000+ seeds per bag
(Special design required for quantities below 30 seeds)

Counting Accuracy:
0–3 pieces

Machine Dimensions:
Approx. L2500 × W2000 × H2500 mm

Applications

• Automatic
  seed counting and packaging
• Vegetable
  seed packaging lines
• Flower
  seed packaging operations
• Large-scale seed processing and packaging
  facilities

Optional Equipment

The system can be
integrated with several optional automation components:

• Auto feeder – automatic seed feeding system
• Inclined bucket conveyor – recommended for easy cleaning
• Inclined
  belt conveyor
• Z-type
  bucket conveyor
• Mini conveyor – bag positioning and transfer from the machine
• L-shape conveyor – bag transfer between packaging stations
• Rotary table – for finished bag collection

Seed Compatibility

Suitable for seeds with
diameters approximately 1–15+ mm, including:

• Tomato
• Melon
• Vegetable
  seeds
• Flower
  seeds
• Other
  similar seed types
