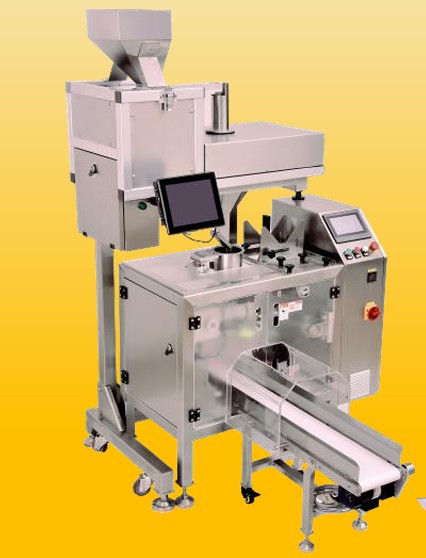

Automatic Seed Counting & Bagging System – DB-200 with C-801 Counter

Automatic Seed Counting & Bagging System – DB-200 with C-801 Counter

Integrated Seed Counting and Packaging Machine

The DB-200 Seed Bagging System combined with the C-801 Seed Counter is designed for automated counting and packaging of vegetable and flower seeds. The system counts seeds precisely and fills them directly into packaging bags, providing an efficient solution for commercial seed packaging operations.

Technical Specifications

Counting Speed:
4–6 bags per minute

Bag Types:

• Stand-up bags
• Side-sealed bags

Bag Size Range:
Width: 80–150 mm
Height: 80–200 mm

Working Range:
30–30,000+ seeds per bag
(Special design required for counts below 30 seeds)

Counting Accuracy:
0–3 pieces

Machine Dimensions:
Approx. L1500 × W1500 × H1800 mm

Applications

• Automatic seed counting and packaging
• Vegetable seed packaging lines
• Flower seed packaging operations
• Seed processing and packaging facilities

Optional Equipment

The system can be integrated with additional automation components:

• Auto feeder – automatic seed feeding system
• Inclined bucket conveyor – recommended for easy cleaning
• Inclined belt conveyor
• Z-type bucket conveyor
• Mini conveyor – bag positioning and transfer
• L-shape conveyor – bag positioning and transfer between stations
• Rotary table – for finished bag collection

Seed Compatibility

Suitable for seeds with diameters approximately 1–15+ mm, including:

• Tomato
• Melon
• Vegetable seeds
• Flower seeds
• Other similar seed types
